COMPUTER AIDED ARCHITECTURAL DESIGN
 Workshop 11 Notes, Week of November 30, 2009

Animation and Bentley Building (we will look at a few examples in Bentley building If time allows)

Animation

Part I. Animation WIth the Animation Producer Dialog Box

Animating Views and Sun
1. Construct a simple model with a surface plane and three simple solid objects (slab, sphere and cone – from Solids palette) in iso view.



2. Go to the front elevation view.
3. Select perspective too from view 3 window (quick method tool selected in window below).



4. Begin to save a series of views that establish a sequence of movement towards the three objects. Keep in mind that as you set up your views (keyframes) you will be able to apply different velocity descriptors: "constant", "accelerate", "deaccelerate" as a way to control the seed of movement between views. We will will use "constant" velocity further below. Go to: utilities/saved views, and save at least three successive views of the model.

5. Once you have saved the views you can begin to assemble the views into your animation sequence. Go to: Task List Animation. Select the animation producer icon highlighed below (Q1).

and then, from the "Animation Producer" dialog box, open "tools/saved views":

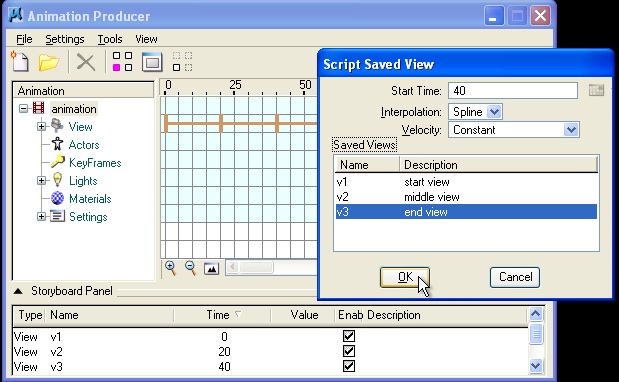

as depicted below, in the Script Saved View dialog box::
double click on v1 and enter: Start Time "0", Interpolation "spline", Velocity "Constant"
double click on v2 and enter: Start Time "20", Interpolation "spline", Velocity "Constant"
double click on v3 and enter: Start Time "40", Interpolation "spline", Velocity "Constant"

.... and so on if there are any additional saved views you wish to incoporate into the animation sequence.



Note that Interpolation “Spline” refers to the movement between your views as key framed locations for the camera in the model space. Velocity “Constant” refers to the velocity that the animation moves between the given views.

Next, create a subdirectory, such as one named "frames", for storing individual animation frames on your local hard drive (a folder).

6. Go to Visualizationm task, select the W1 lighting manager tool, to setup global lights and turn on the sunlight. Check also that the Ambient Light and Flashlight are set to appropriate intensites and that the color of all the lights is white.


6. To preview your movie from within the Animation Producer dialog box. goto Tools/ Preview, and play through the results for view 3.

7. Next, return to Animation Producer dialog. Go to File/Record Script in order to record animation as a series of single single jpg files with the following settings:

Select the "OK" button, and animation will render with a visible echo back to the view screen.



8. To play your movie: go to the menu utilities/image/movie, and then with the "Movies" dialog, box, go to "Load" and find the image file "walk000.jpg" under whatever folder you have created in step 5 above.

9. From the same Movie dialog box, you can then use file "Save As" option to save the completed movie to single file ( avi etc.), such as
" animaion.avi".


10 . In order to simulate the pathway of light throughout the course of a day, in the Animation Producer dialog box/animation palette go to:
Lights/Global/Solar/Time, and right-click on the word "Time" to select the "script" option. This results in the "Animate Settings" dialog box.

In the "Animate Settings" dialog box, create the following settings for two different times:

11. As before, record animation in the jpg format with the following setttings:

PART 2. Simple and Direct Methods (NOT COVERED IN WORKSHOP)

1. Add a bspline to new layer
2. Use the menu sequence Utilities/render/flythrough, select the spline and use the "fixed" method

PART 3. Animating Objects

1. Making an actor



2. Now keyframe the actor via Animation Producer Dialog box:

3. Now script the keyframes at 0 and 60


4.Record the animation as jpg or avi as before.

5. You can then make and select more actors (animate more objects) if so desired.

6. Using algebraic descriptors

6.1 Go to the Tools/parameters in animation Producer Dialog box, and create a variable

From the Animation Producer dialog box's Tools menu, choose "Parameters" .

  1. The Animation Parameters dialog box opens
  2. Click the "Create" button and the The Create Parameter dialog box opens.
  3. In the Name field, key in the name for a new parameter (e.g., "cylinder_height").
  4. In the Value field, key in a value such as 10.
  5. (Optional) In the Description field, key in a description of the parameter.
  6. Click the OK button.
  7. The Create Parameter dialog box closes, and the parameter is added to the Animation Parameters dialog box.

6.2. Now, go to the Script actor tool (W6), and select the "box".


In the blank field for "Z Position" , enter "cylinder_height * frame/maxFrame" and select the OK button.
6.3 Record animation using methods already expored.
res. 320 x 200
raytrace – antialias
save to walk4.avi

6.4 Similarly, the Z Positio parameter could use the Sine function "sin" and the absolute value functions "abs" such as in the expression:
"fabs(heightbox * sin(frame * 360/ maxFrame))"

Additional variables

Variable

Description

frame

frame number

pi

the mathematical value, Pi, which is equal to the angle covered by one-half of a circle

tSeconds

elapsed time from beginning of sequence (frame 0) in seconds

beginFrame

beginning frame of the section currently being recorded

endFrame

end frame of the section currently being recorded

minFrame

first frame number at which action is defined (frame 0); also first frame of a preview

maxFrame

last frame number at which action is defined; also last frame of a preview

beginSequence

frame number of the start of the current script

endSequence

last frame number of the current script

sequenceLength

length of the current script in frames

tSecondsSequence

elapsed time (in seconds) from beginning of the current script

Additional functions

These functions are identical to those in the standard C math library, except that all angular values are expected and returned in degrees rather than radians.

Function

Description

radiansFromDegrees(d)

radians from degrees

degreesFromRadians(r)

degrees from radians

secondsFromFrame(f)

seconds from frame number

cos(angle)

trigonometric cosine of angle

acos(value)

arc cosine of value

sin(angle)

sine of angle

asin(value)

arc sine of value

atan(value)

arc tangent of value

atan2(valueY, valueX)

arc tangent of valueY/valueX

tan(angle)

tangent of angle

cosh(value)

hyperbolic cosine of value

sinh(value)

hyperbolic sine of value

tanh(value)

hyperbolic tangent of value

exp(value)

exponential of x

log(value)

natural logarithm of value

log10(value)

base 10 logarithm of value

pow(x,y)

x to y power

sqrt(value)

square root of value

fabs(value)

absolute value of

ceil(value)

smallest integer not less than value

floor(value)

largest integer not greater than value

fmod(x,y)

floating point remainder of x/y

rand()

pseudo random number

srand(x)

set random seed

Note: The use of cylinder_height above is but one example of a customized animation parameter. We can paramterize objects in a way that is similar to how we used algebraic expressions within generative components.



Often the same parameters are used in multiple equations of motion in different models. You can save time by using some built-in variables and pre-definded functions to define custom parameters. Once you define a custom parameter, you can refer to it by name when scripting actors.

For example, consider a custom parameter, named " revolution", defined as follows:
360/maxFrame*frame

An actor whose motion is scripted as revolution rotates one full rotation during the course of the animation sequence, no matter how many frames are used. This is determined as follows: dividing 360 (degrees) by the total number of frames (maxFrame) gives the rotation per frame. This, in turn, is multiplied by the current frame number (frame).

Mathematical operators can be applied to custom parameters in the same manner as to built-in variables. Continuing with the example, in scripting an actor to rotate, you could use the following:

2*revolution — to rotate the actor 720°

revolution/2 — to rotate the actor 180°

Each newly defined custom parameter is stored in the active script along with the script entries themselves. You can then include this script in other scripts. Where you have commonly used parameters, you can place these in a separate DGN file and then import them as required.



PART 3: Graphing the Movement Of Objects

1. A third method of scripting an actoris to graph it. To explore this method:




2. Throughout, remember to create new subdirectories to keep all the rendered images of ananimation together.

PART 4: Motion Paths

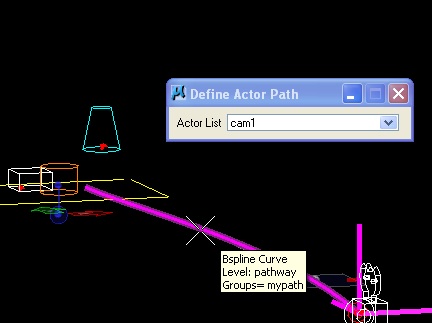

To move an actor or camera along a path. You first create a path, such as bspline. You also create a camera. You then set the actor or camera in motion along the path. The path can be a closed element (such as a block or circle), or an open element (such as a line, line string, curve, arc, or B-spline curve). You can identify the actor graphically, or you can double-click its name in the drop-down Actor List menu in the tool settings



PART 5: CREATING MOVIE FILES FROM JPG FRAMES IS QUICKTIME

Animations saved as AVI can be viewed though Quicktime can be download from Apple's web site.
A series of animation frames can also be flie loaded through Quicktime Pro available on public computers in the school and saved directly to the Quicktime mov format (e.g., myanimation.mov) for higher quality 24 bit color. Quicktime Pro is available for purchase through Apple Computer.



PART 6: Animation through Simpler One-off Options (not covered workshop)

1. Solar Animation

1. Go to: Utilities/render/solarstudy
2. Select a start time and total time
3. Pick the number frames
4. Save (AVI 16 bit) in desired drive/directory
5. Use the above steps for viewing.

2. Fly By / Through

1. Go to a plan/top view and zoom out and create a separate level on which to place your path.
2. Use a bspline curve to set your path by drawing the curve towards your model from across the screen. Go to a side view to move the curve up in space.
3. Then:
Utilities/render/flythrough
4. Fix target position
Output view 3
Raytrace
30 frames



Note: For further animation reference materials (older interface) you may want to consult the ARCH 545 website:
http://www.arch.virginia.edu/arch545/handouts.html



Open Bentley Building

PART 1: STAIRS

Open Bentley Architecture V8i and create a new file (e.g., "building.dgn").

In the floors task, create a stair of Half-turn by locating a point on the ground, designating the size platform, and then giving the stair orientation.

PART 2: WALLS

In the Generic Forms task, create four sets over overlapping "Linear Forms" walls forming a "X" intersection, either directly or by copying a pair of walls.

In the floors task, use the Connect Forms/Connect Forms tool to perform T, and Cross, and to L Shape Joint. Note that dominant wall is selected last.

PART 3: ROOF

Build a simple shed roof.In the floors task, use the Connct Forms/Modify Forms tool to connect the walls to the roof forms.
