COMPUTER
AIDED
ARCHITECTURAL DESIGN
Workshop 10 Notes,
Week of November 5, 2012
INTRODUCTION TO VB
SCRIPT COMPONENTS INSIDE GRASSHOPPER (F I R S T _ D R A F T)
1. Hello World and Simple VB Scripts
In some circumstances it may be more effective to use a Visual Basic Script (VB Script) component in conjunction with other Grasshopper components. We begin with a few simple VB scripts. These first scripts are for introductory purposes and don't necessarily offer an advantage over other Grasshopper components. We will then move onto VB Scripts which may offer advantages over other Grasshopper options.
First, we demonstrate a script that outputs the text string "Hello World!". This follows a tradition of introducing programming languages with a "Hello World!" example to establish a basic understanding . Launch Rhino and Grasshopper, and load the file helloworld.gh. The file shows two VB scripts, one that echos back the text string "Hello World!" and a second that returns the sum of two numbers.
Note that the input text strings "Hello" and "World" are connected to two "Str" (string) components. The two "Str" components are in turn connected to the VB Script input parameters "x" and "y". The VB Script in turn returns the parameter "A", which is the text string "Hello World!".
If you modify either of the input text strings, then the output text string is modified accordingly, such as replacing the text string "World" with the text string "Virginia" in the example below:
To see the VB Script in detail, double click on "VB" icon in the Grasshopper window to launch the script editor.
Note that the two input arguments "x" and "y" are passed into the VB script component "ByVal" and as "As String" type variables. The "String" designation means that both "x" and "y" are a text expression of alphanumeric characters. The "ByVal" designation means that any change to the value of the variable (such as "x" or "y") inside the VB Script component is limited in scope to be internal to the script function. However, the modification to the value of the variable internal to script function doesn't change its value outside the script. Thus if we added the line to the above script x = "virginia film festival". The value of x outside of the script would be unchanged from x = "World".
Note also that the one output variable "A" is returned from the script "ByRef". The "ByRef" designation means that any change to the value of the variable "A internal to the script function concurrently modifies its value outside of the script function. Thus, since "A" is returned from the VB Script, the value of A = string1 (i.e., "Hello World!") can be input in the yellow panel shown above.
Lets break down the statements on lines 94 and 95 in the Script Editor above.
The first statement on line 94 declares a new string variable "string1" by joining together 1. the value of the string x, 2. a blank space " ", 3. the string y, and 4. the exclamation point "!". Note that the use of the "+" symbol is used to add together (concatenate) the larger string from the the strings "Hello", " ", World, "!", similar to how one might add several numbers together.
Dim string1 As New String(x + " " + y + "!")
Within the VB Script component, the second statement on line 95 assigns the concatenated string to the output variable "A".
A = string1
The output variable "A" is in turn directed to the input port of the yellow panel that displays the result "Hello World!".
Now we will reconstruct the script from scratch. Go to File/New Script. Go to the "Params" tab and in the "Input" area, select the yellow panel.
Drag two yellow panels with the left-mouse button into the Grasshopper view window.
Double click on each panel, and edit the text string to become "Hello" on on panel and to become "World" pn the other panel.
The result is that the panels should transform as follows.
Continuing with the "Params" tab, go to the "Primitive" area and select the string component.
Drag two string components with the left-mouse button into the Grasshopper view window, and connect their input ports to the output ports of the two yellow panels.

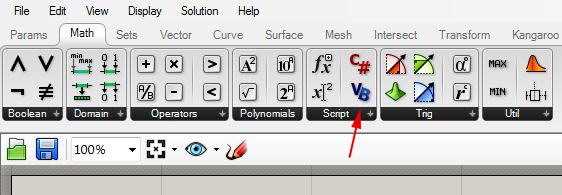

Now go the the "Math" tab and in the "Input" area, select the yellow panel "VB".
Drag on VB component with the left-mouse button into the Grasshopper view window and connect its input ports to the output ports of the two string components.
Zoom into the VB component , right-click on the letter "x", go the the "Type hint" item, and change the type to "String". Do the same for the letter "y" variable.
![]()

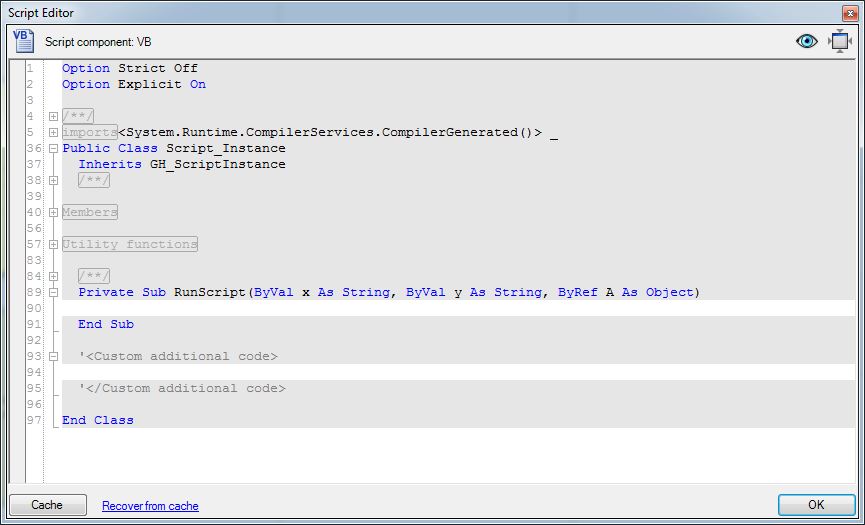

Now, double-click on the VB symbol in order to open the VB editor. Note that the input variables "x" and "y" are declared in the function as type "String" variables.
Beginning just below the line "Private Sub RunScript(ByVal x As String, ByVal y As String, ByRef A As Object)" ( line # 90 within the Script Editor shown above), add the following two expressions:
Dim string1 As New String(x + " " + y + "!")
A = string1

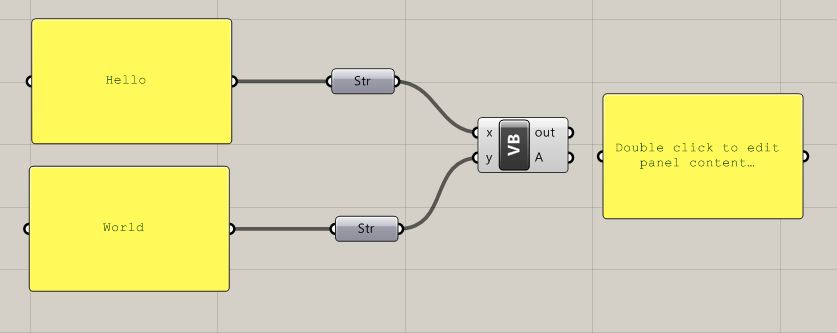

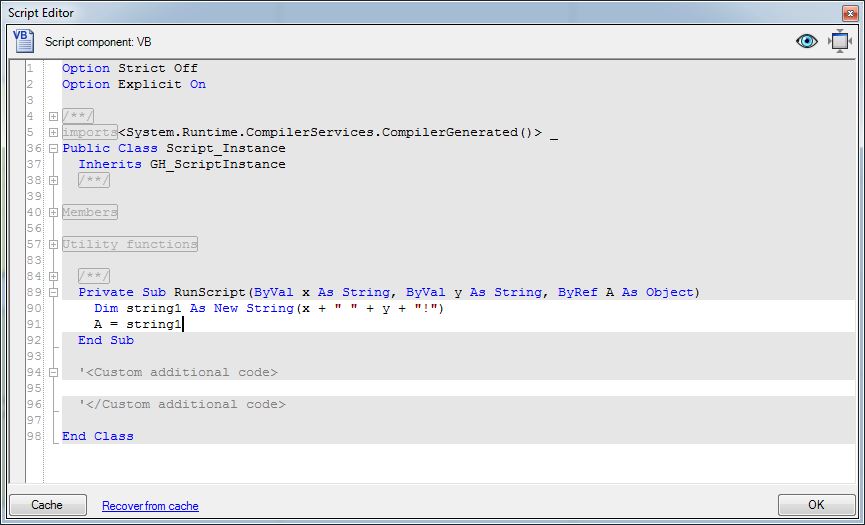

Select the "OK" button on the lower right hand corner of the Script Editor to conclude editing the script. Go back to the "Params" tab and to "Input" area, select the yellow panel , add it to the right of the VB script within the Grasshopper view window.

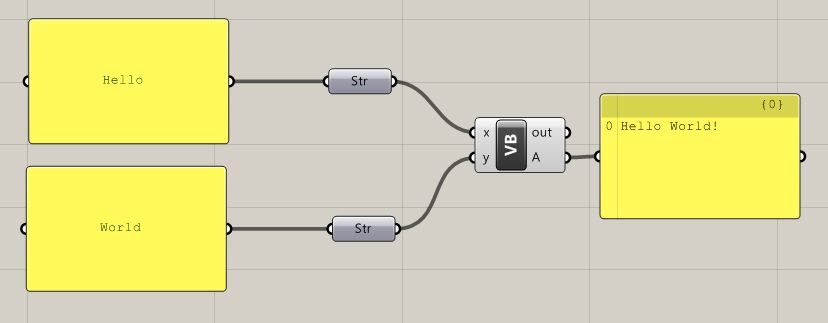

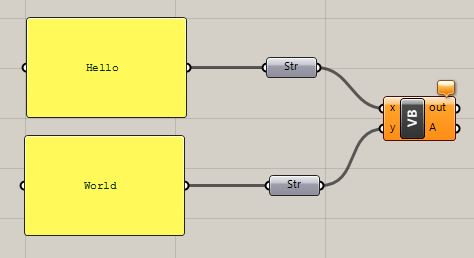

Connect the output port "A" of the VB script to the yellow panel to obtain the final result of the VB script.
Note that it is generally quite useful to document the purpose, input and output functions of the VB script with comment lines. Comment lines are not executed and are preceded by a single quote symbol " ' " (e.g., 'This is a comment line). For example, double-click on the VB component, and add the comment lines just below the line "Private Sub RunScript(ByVal x As String, ByVal y As String, ByRef A As Object)"
'Returns "Hello World!
'INPUT: string x "hello" and y "world"
'OUTPUT: A concatenates x and y
The VB script to construct two numbers is constructed in a similar way. Go to the "Params" tab and from the "Input" and a number slider.

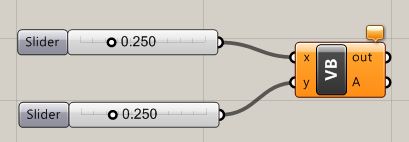

Drag two number sliders into the Grasshopper view window. Now, similar to the "Hello World" example, go to the Math "Tab" and from the "Script" area drag VB component with the left-mouse button into the Grasshopper view window and connect its input ports to the output ports of the two number slider components.

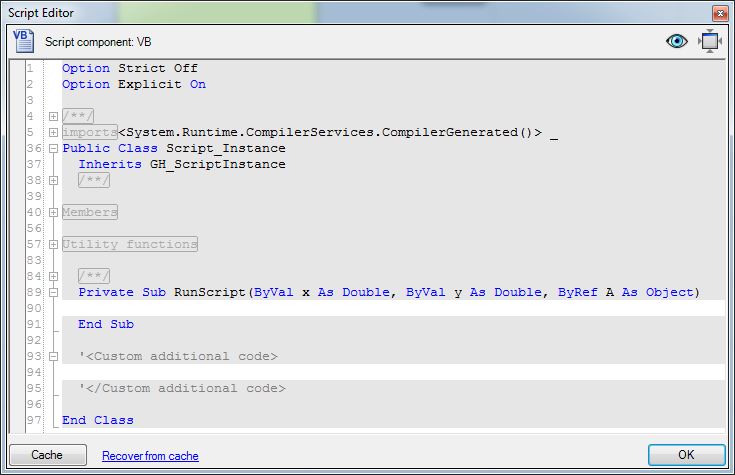

Zoom into the VB component , right-click on the letter "x", go the the "Type hint" item, and change the type to "Double". Do the same for the letter "y" variable. Double click on the VB Symbol in order to open the VB Editor. Note that the input variables "x" and "y" are declared in the function as type "Double".

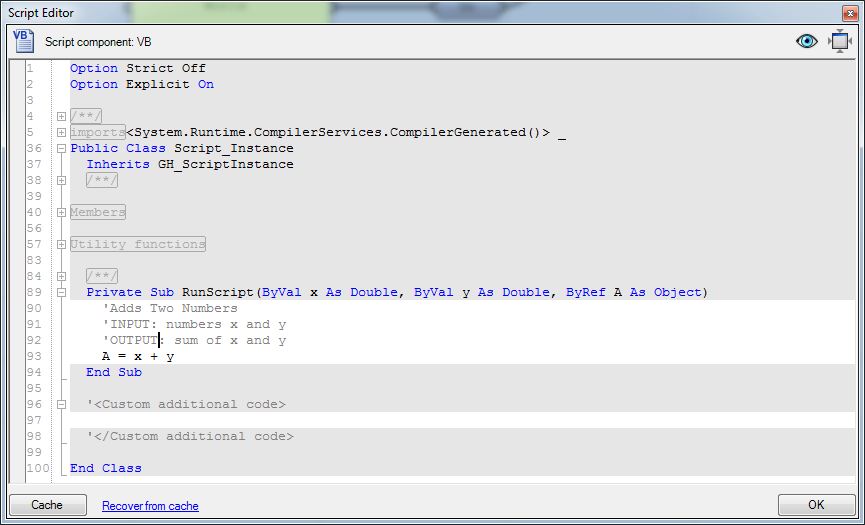

The following comment lines and expressions are now added to complete the VB script and return the result in the variable A.
'Adds Two Numbers
'INPUT: numbers x and y
'OUT: sum of x and y
A = x + y

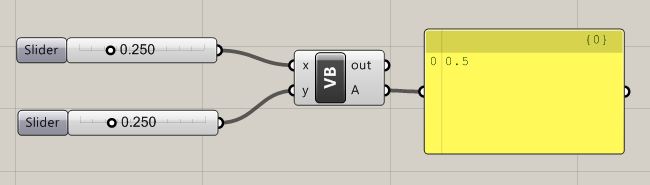

Finally, select the "OK" button on the lower right hand corner of the Script Editor to conclude editing the script. Go back to the "Params" tab and to "Input" area, select the yellow panel , add it to the right of the VB script within the Grasshopper view window. Connect the output port "A" of the VB script to the yellow panel to obtain the final result of the VB script.
2. Scripts to Draw a Few Graphic Primitives
Within the previous set of Grasshopper workshop notes (workshop 9), we covered how to generate a line from two points. Here we perform the same task by using a VB script to produce a grasshopper file makeSimpleLine.gh.
Initiate the script within Rhino by creating two points in the x, y ground plane.
Within Grasshopper, go to the "Params" tab and within the "Geometry" area, select and drag two point icons into the work area.
Right-click on each of the two points and use the "set on point" option to connect them to the points created on the x, y plane.
Next, similarly to "Hello World" example above, go the "Math" tab and within the "Script" area drag a "VB" component into the Grasshopper View window.Connect the the points to the " x" and "y" input ports of the VB script component. Zoom up to "x" variable, right-click on it and in the top line of the dialog box that follows, change the name to " point1". Right click on "point1" again and change the Type hint option to "Point3d". Similarly, rename the "y" variable to be "point2" and change the Type hint option to "Point3d"
![]()
Double-click on "VB" of the VB scripting component, to go to the script editor, and add the following expressions:
Add the following comment lines at the beginning of the script:
'Draws a line from two points
'INPUTS: Two points
'OUTPUT: A line determined by the two pointsAdd the following statements after the comment lines:
Dim aSimpleLine As New Line(point1, point2)

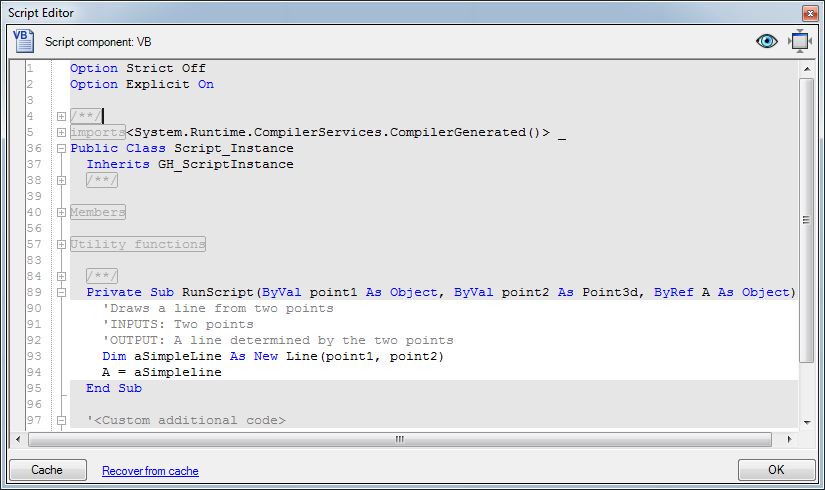

A = aSimpleLineWithin the script editor we see the following result:
This completes the script and resulting line should now appear inside Rhino.
Move either of the two points and the line is modified accordingly.
The same script can be modified to draw a rectangle, makeSimpleRectangle.gh, from the initial end points.
First, note that we can extract the coordinates x1, y1, z1 from point1 and the coordinate x2, y2, and z2 from point2. We can combine the two sets of coordinate to get the four points cornerPt1, cornerPt2, cornerPt3 and cornerPt4, that detemine the rectangle. Assuming that both point1 and point2 are in the x-y plane, also note that z1 = z2. That is, we have the following way to establish the values of the four corner points.
cornerPt1 - based upon x1, y1, z1
cornerPt2 - based upon x2, y1, z1
cornerPt3 - based upon x2, y2, z1
cornerPt4 - based upon x1, y2, z1.With this in mind, we can edit the VB script as indicated below to get a rectangle. Note that comment lines added to the script describe what is achieved by each step.
'Draws a rectangle from two points
'INPUTS: Two points
'OUTPUT: A polyline (rectangle) determined by the two points
'Create a point list array to hold the corner points
Dim cornerPts As New Point3dList
'Create the corner points from the x, y, and z coordinates of point1 and point2
Dim cornerPt1 As New Point3d(point1.X, point1.Y, point1.Z)
Dim cornerPt2 As New Point3d(point2.X, point1.Y, point1.Z)
Dim cornerPt3 As New Point3d(point2.X, point2.Y, point2.Z)
Dim cornerPt4 As New Point3d(point1.X, point2.Y, point1.Z)
'Add the corner points to the point list
cornerPts.Add(cornerPt1)
cornerPts.Add(cornerPt2)
cornerPts.Add(cornerPt3)
cornerPts.Add(cornerPt4)
cornerPts.Add(cornerPt1)
'Create the polyline from the list of points
Dim aPolygonLine As New Polyline(cornerPts)
'Return the polyline from the VB script

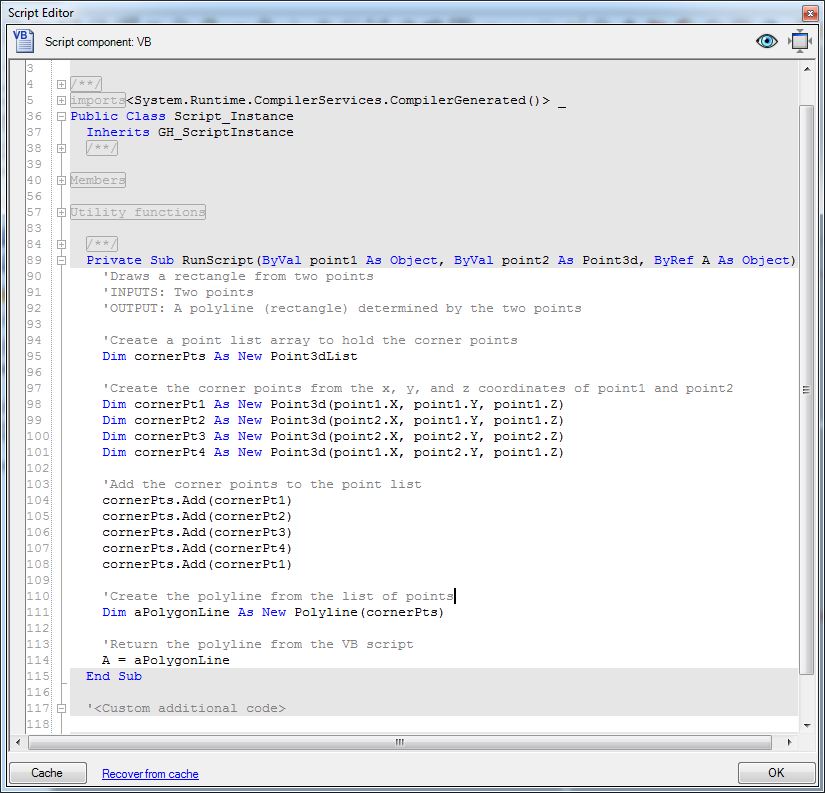

A = aPolygonLineThe script editor is now modified as follows.
The script as now completed draws a rectangle. Note that moving the lower left corner point from within Rhino dynamically redraws the rectangle.
Looking at this script in greater detail, observe that we have introduced a point list array Point3dList with the statement
Dim cornerPts As New Point3dList
Points are added to this list in the order in which they were created with the statement
cornerPts.Add(cornerPt1)
This list has a zero based indexing system such that:
cornerPts(0) = cornerPt1 {the lower-left point of the rectangle
cornerPts(1) = cornerPt2 {the lower-right point of the rectangle
cornerPts(2) = cornerPt3 {the upper-right point of the rectangle
cornerPts(3) = cornerPt4 {the upper-left point of the rectangle
cornerPts(4) = cornerPt1 {the lower-left point of the rectangleWe add the lower-left point to both the beginning and the end of the list to ensure that we get a closed polyline..
Note too that we introduced a polyline object variable with the statementDim aPolygonLIne As New Polyline(cornerPts)
The polyline object variable is thus initialized with the listing of points.
3. Script That Uses Iteration to Express Recurring Relationship With An Exit Condition
To draw a series of inwardly rotating polylines makeInwardlyTurningRectangle.gh from the outer rectangle, we need to repeat a similar operation a specified number of times.
![]()
Note that in the figure above, each inner polyline is calculated from point that is 40% along along each of the four sides of the next outer polyline. In the VB script used to generate this figure, a technique referred to as iteration is used to repeat the same process a given number of times. A number of such iterative expressions exist within the VB scripting language. Within the current example, we use a "For" expression that for some integer " i" steps in value from 1 to the number of times we want to repeat the procedure :
For i = 1 to numberTimes
Calculate four points of each new polyline
Create a new polyline from the four points
Add the polyline to a list of polylinesnext
Note that the "For" expression is concluded with a "next" expression to indicate where the iteration is repeated until completed.
First, lets begin by adding to new parameters to the Grasshopper Script from Part 3. Go to the "Params" tab and in the "Input" area add two numerical sliders to the Grasshopper view window.
Double-click on the word "slider" and rename the numerical sliders paramDist and numberTimes. The paramDist slider by default ranges in value from 0.0 to 1.0, which we can use to represent 0% to 100% of the distance along any side of the last outer polygon. Adjust the numberTimes slider so that it ranges in value from 0 to 20, and adjust the type to"N" (integer numbers).
Zoom up on the VB script symbol until "+" symbols appear below the input variables "point1" and "point2".
![]()
Select the "+" symbol below "point2" to add a variable "paramDist". Change the default name of "x" to "paramDist" and change the Type hint option to "Double". Similarly, select the "+" symbol below "paramDist". Change the default name of "x" to "numTimes" and change the Type hint option to "Integer".

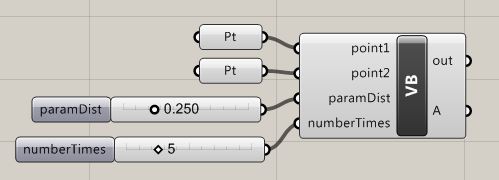

Next, connect the output ports of the two numerical sliders to the new input variables of the VB script.
Now, to create the series of rectangles we edit the VB script to incorporate the following text. Comment lines preced by a "': describe what each step of the VB script does.
Private Sub RunScript(ByVal point1 As Object, ByVal point2 As Point3d, ByVal paramDist As Double, ByVal numberTimes As Integer, ByRef A As Object)
'Draws a series of rotating rectangles from two points
'INPUTS: Two points
'OUTPUT: A line determined by the two points
'Determine corner points of outer rectangle
Dim cPt1 As New Point3d(point1.X, point1.Y, point1.Z)
Dim cPt2 As New Point3d(point2.X, point1.Y, point1.Z)
Dim cPt3 As New Point3d(point2.X, point2.Y, point2.Z)
Dim cPt4 As New Point3d(point1.X, point2.Y, point1.Z)
'Create a new list of polylines
Dim polyLineList As New List(Of Polyline)
'Initiate a counter variable i as an integer (whole number)and set its present value to 0
Dim i As Integer = 0
'Build a loop to draw the outer rectangle and then to draw each inner polyline
For i = 0 To numberTimes
'Create a list of corner points
Dim cornerPts As New Point3dList
'Add each of the four corner points to the list
cornerPts.Add(cPt1)
cornerPts.Add(cPt2)
cornerPts.Add(cPt3)
cornerPts.Add(cPt4)
cornerPts.Add(cPt1)
'Create a new polyline based upon the corner points
Dim aPolygonLine As New Polyline(cornerPts)
'Add the polyline to the list of polylines
polyLineList.Add(aPolygonLine)
'Determine the corner points of the next inner polyline based upon the value of paramDist along each side of the current polyline.
Dim newcPt1 As New Point3d((cPt2.X - cPt1.X) * paramDist + cPt1.X, (cPt2.Y - cPt1.Y) * paramDist + cPt1.Y, (cPt2.Z - cPt1.Z) * paramDist + cPt1.Z)
Dim newcPt2 As New Point3d((cPt3.X - cPt2.X) * paramDist + cPt2.X, (cPt3.Y - cPt2.Y) * paramDist + cPt2.Y, (cPt3.Z - cPt2.Z) * paramDist + cPt2.Z)
Dim newcPt3 As New Point3d((cPt4.X - cPt3.X) * paramDist + cPt3.X, (cPt4.Y - cPt3.Y) * paramDist + cPt3.Y, (cPt4.Z - cPt3.Z) * paramDist + cPt3.Z)
Dim newcPt4 As New Point3d((cPt1.X - cPt4.X) * paramDist + cPt4.X, (cPt1.Y - cPt4.Y) * paramDist + cPt4.Y, (cPt1.Z - cPt4.Z) * paramDist + cPt4.Z)
'Reset the older corner points to the new one for stepping through the next iteration of the for loop
cPt1 = newCPt1
cPt2 = newCpt2
cPt3 = newCpt3
cPt4 = newCpt4
'Note that the next time through the loop, the index variable i increases by the value of 1 (e.g, i = 1, 2, 3, etc.)
Next 'The word "next" signifies the end of the loop
'Return the list of polylines from the VB script.
A = polyLineList

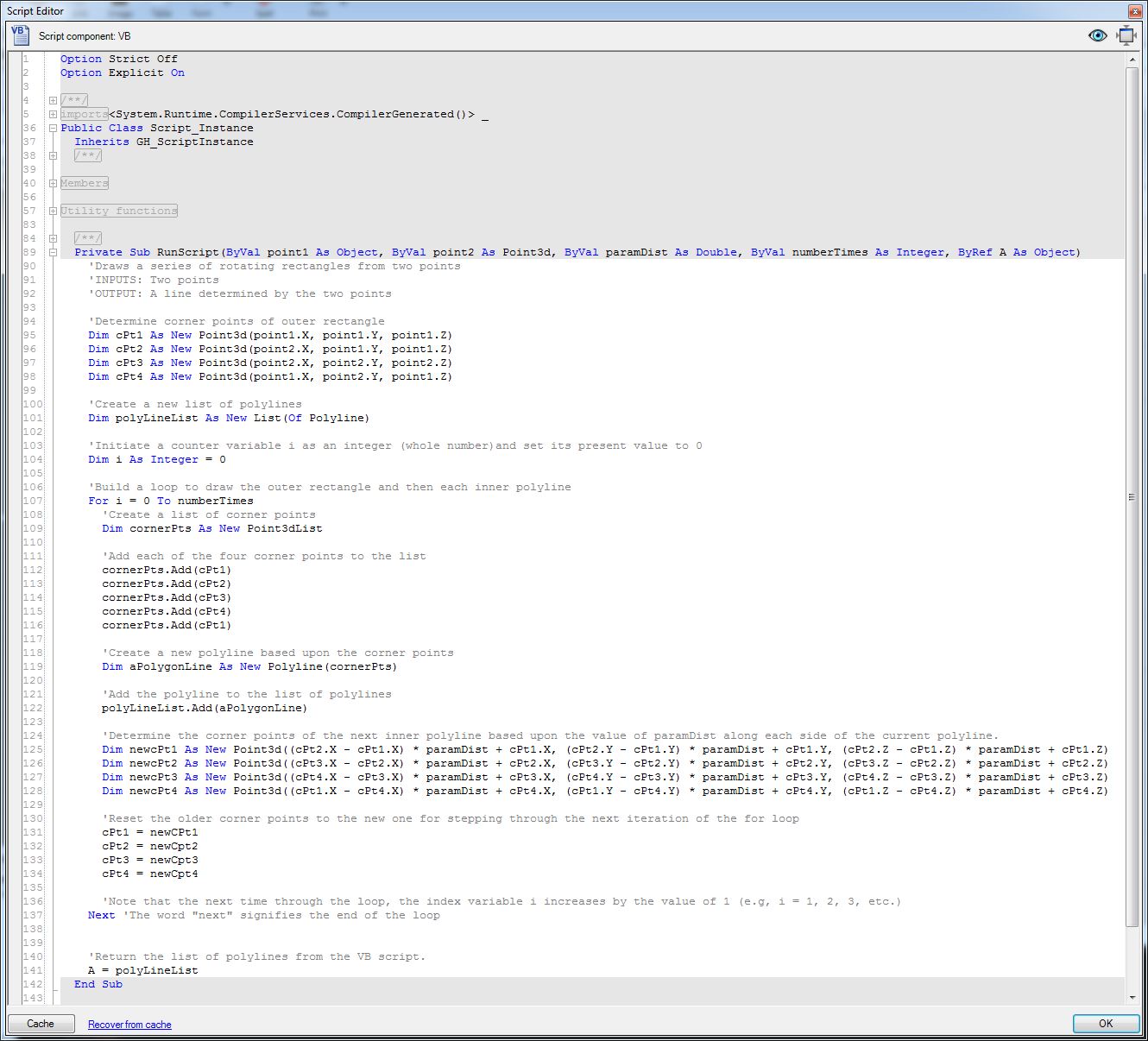

End SubThe Script Editor now appears as follows.
3. Script That Uses Iteration to Generate A Helix
To draw a series of inwardly rotating polylines form the outer rectangle, we needed to repeat a similar operation a specified number of times. Similar to the rotating figure above, a helix, such as determined by, adjustableHelix.gh, can also be described by a loop. The vertices that are used to define the spiral are also created in a repeated operation for a specified number of times. Using tools described previously, initiate the helix by placing two point parameters with a Grasshopper window, and by also adding four numerical slider parameters. One point will be used to identify the center of the spiral. The second point will be used to define the radius. The following sliders should have the following value types and ranges:
Name of Slider Description Type Min Value Max Value numRev number of revolutions in the spiral Integer (N) 1 25 numSide number of sides in each revolution of the sprial Integer (N) 3 360 heightIncrement height increment in each revolution of the spiral Floating Point (R) 0 25 radiaIncrement radius increment in each revolution of the sprial Floating Poing(R) -25 25
Next, create two points in Rhino and connect them to the point input parameters, as done in previous examples. The two points will serve as the center point and radial point of the sprial.

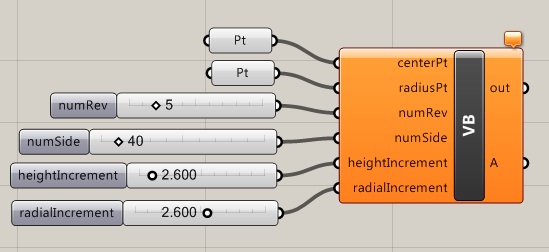

Now, add a VB script component to the Grasshopper View window and add the following input variables and types (use the Type hint feature as done in earlier examples):
Name of Variable Description Type hint centerPt center point of helix Point3d radiusPt radial point of helix Point3d numRev number of revolutions in the spiral Double numSide number of sides in each revolution of the sprial Double heightIncrement height increment in each revolution of the spiral Double radiaIncrement radius increment in each revolution of the sprial Double Note that the sliders for numRev and numSide ares specified at Integers, but that the input variables numRev and numSide are specified as Double (i.e. floating point numbers). Thus the values are converted from integers to floating point numbers when connected to the VB script. The integer designation for the sliders ensures that only whole numbers are selected. This conversion to floating point numbers ensures that floating point accuracy is maintained in the VB script where needed in some operations.
Finally, double-click on the VB script and add the following expression into the script editor. Note the the first line "Private Sub Runscript ... "(etc.) is already given.
Private Sub RunScript(ByVal centerPt As Point3d, ByVal radiusPt As Point3d, ByVal numRev As Double, ByVal numSide As Double, ByVal heightIncrement As Double, ByVal radialIncrement As Object, ByRef A As Object)
'Draws a helix
'INPUTS: centerPt and radiusPt of helix
'numRev = number of revolutions in helix
'numSide = number of sides per revolution
'heightIncrement = height increment per revolution
'radialIncrement = radius increment per revolution
'OUTPUTS: A = polyline approximation of helix curve.'Declare variables for spiral point list and radius
Dim ptList As New List(Of Point3d)
Dim radius As Double'Declare vector from center point to radius point, and set radius to value of vector length
Dim radialVector As New Vector3d(RadiusPt.X - CenterPt.X, RadiusPt.Y - CenterPt.Y, RadiusPt.Z - CenterPt.Z)
radius = radialVector.Length'Declare variable to hold incremental values of rotation angle, height and radius for each point in the spiral
Dim angleIncrement As Double = 360.0 / numSide
Dim ptHeightIncrement As Double = heightIncrement / numSide
Dim ptRadialIncrement As Double = radialIncrement / numSide'Declare variable to hold the initial values for the angle, height and radius
Dim curAngle As Double = 0
Dim curHeight As Double = 0
Dim curRadius As Double = radius'Loop to generate points in the spiral
For i As Integer = 1 To numRev * numSide
'Determine x, y, and z coordinates of each point
Dim x As Double = math.Cos(math.PI / 180.0 * curAngle) * curRadius
Dim y As Double = math.Sin(math.PI / 180.0 * curAngle) * curRadius
Dim z As Double = curHeight
Dim curPt As New Point3d(CenterPt.X + x, CenterPt.Y + y, CenterPt.Z + z)'Add each successive point to the point list
ptList.Add(curPt)'Advance the values of the current angle, current height and current radius for the next point in the spiral
curAngle = curAngle + angleIncrement
curHeight = curHeight + ptHeightIncrement
curRadius = curRadius + ptRadialIncrement
Next' end of loop'Determine a polyline from the point list
Dim pLine As New Polyline(ptList)'Return the polyline to Rhino
A = pLine
End SubSelect the "OK" button in the editor and the Grasshopper file will produce the helix as depicted in the following image.
4. Script That Uses Iteration to Generate A Ramp
The helix script can be enhanced to become todraw two spirals that form a ramp, as illustrated by the Grasshopper file adjustableRamp.gh.The essential strategy for looping through vertices is the same. Begin by adding a radial point within Rhino to determine the location of the second helix.
Next, within Grasshopper add a new point input parameter radialPt2 and connect it to the recently added radial point, and a corresponding Point3D variable "radiusPt2" to the VB script.
Within the VB script, we now double up on the points so as to produce two spirals rather than one spiral. Furthermore, rather than use the points to form a polyline as in the previous example of the helix, we use them to form two bspline curves. Next, the bspline curves are used to generate a ruled surface. Whereas polylines can not be used to generate a ruled surface, the bspline curves can be used to generate one.
The VB Script is thus modified as follows. See the comment lines below in grey (e.g., 'Declare variables) for details:
Private Sub RunScript(ByVal centerPt As Point3d, ByVal radiusPt As Point3d, ByVal radiusPt2 As Point3d, ByVal numRev As Double, ByVal numSide As Double, ByVal heightIncrement As Double, ByVal radialIncrement As Object, ByRef A As Object)
'Draws a helix ranp
'INPUTS: centerPt and radiusPt of helix
'numRev = number of revolutions in helix
'numSide = number of sides per revolution
'heightIncrement = height increment per revolution
'radialIncrement = radius increment per revolution
'OUTPUTS: A =ramp based upon helix curves'Declare variables for spiral point lists and radii
Dim ptList As New List(Of Point3d)
Dim ptList2 As New List(Of Point3d)
Dim radius As Double
Dim radius2 As Double'Declare vectors from center point to radius point, and set radius to value of vector length
Dim radialVector As New Vector3d(RadiusPt.X - CenterPt.X, RadiusPt.Y - CenterPt.Y, RadiusPt.Z - CenterPt.Z)
radius = radialVector.Length
Dim radialVector2 As New Vector3d(RadiusPt2.X - CenterPt.X, RadiusPt2.Y - CenterPt.Y, RadiusPt2.Z - CenterPt.Z)
radius2 = radialVector2.Length'Declare variables to hold incremental values of rotation angle, height and radius for each point in the spiral
Dim angleIncrement As Double = 360.0 / numSide
Dim ptHeightIncrement As Double = heightIncrement / numSide
Dim ptRadialIncrement As Double = radialIncrement / numSide'Declare variables to hold the initial values for the angle, height and radius
Dim curAngle As Double = 0
Dim curHeight As Double = 0
Dim curRadius As Double = radius
Dim curRadius2 As Double = radius2'Loop to generate points in the two spirals
For i As Integer = 1 To numRev * numSide
'Determine x, y, and z coordinates of each point
Dim x As Double = math.Cos(math.PI / 180.0 * curAngle) * curRadius
Dim y As Double = math.Sin(math.PI / 180.0 * curAngle) * curRadius
Dim z As Double = curHeight
Dim curPt As New Point3d(CenterPt.X + x, CenterPt.Y + y, CenterPt.Z + z)
Dim x2 As Double = math.Cos(math.PI / 180.0 * curAngle) * curRadius2
Dim y2 As Double = math.Sin(math.PI / 180.0 * curAngle) * curRadius2
Dim z2 As Double = curHeight
Dim curPt2 As New Point3d(CenterPt.X + x2, CenterPt.Y + y2, CenterPt.Z + z2)'Add each successive point to the two point lists
ptList.Add(curPt)
ptList2.Add(curPt2)'Advance the values of the current angle, current height and current radius for the next point in each of the point lists
curAngle = curAngle + angleIncrement
curHeight = curHeight + ptHeightIncrement
curRadius = curRadius + ptRadialIncrement
curRadius2 = curRadius2 + ptRadialIncrement
'End of loop
Next
'Create inner and outer curves (not polylines) based upon the ptlists
Dim pCurve1 As New NurbsCurve(1, numRev * numSide)
pCurve1 = NurbsCurve.Create(False, 1, ptList)
Dim pCurve2 As New NurbsCurve(1, numRev * numSide)
pCurve2 = NurbsCurve.Create(False, 1, ptList2)'Build ruled surface from the two curves
Dim rampSurf As NurbsSurface
rampSurf = NurbsSurface.CreateRuledSurface(pCurve1, pCurve2)'Return ruled surface to be displayed in Rhino
A = rampSurfEnd Sub
Note that we used some new statements to determine a surface.'Build ruled surface from the two curves
Dim rampSurf As NurbsSurface
rampSurf = NurbsSurface.CreateRuledSurface(pCurve1, pCurve2)In particular we used a function library NurbsSurface.CreateRuledSurface. A number of functions have been created for Grasshopper to generate geometry and handle other requirements. This is currently under development. The documentation is incomplete. The current listing of functions and related examples can be found in the web site:
http://www.rhino3d.com/5/rhinocommon/
5. Scripts That Are Embedded In More Complex Condition
The ramp script can be described relative to a few input parameters and more basic geometrical primitives. Typically applications of scripting respond to more complex circumstances that may involve several stages of converting geometry from one form to another in order to realize a specific soluton. For example, the Grasshopper file surftoMeshPillows.gh can be applied a variety of surfaces such as depicted in the Rhino file simpleSaddle.3dm. As illustrated below it converts a simple saddle surface into a mesh surface, and in turn converts the mesh surface into a set of surface pillows. Input variables determine the density of the pillows as well as their relative scale. The VB script geneates a pillow for each facet in the mesh surface.

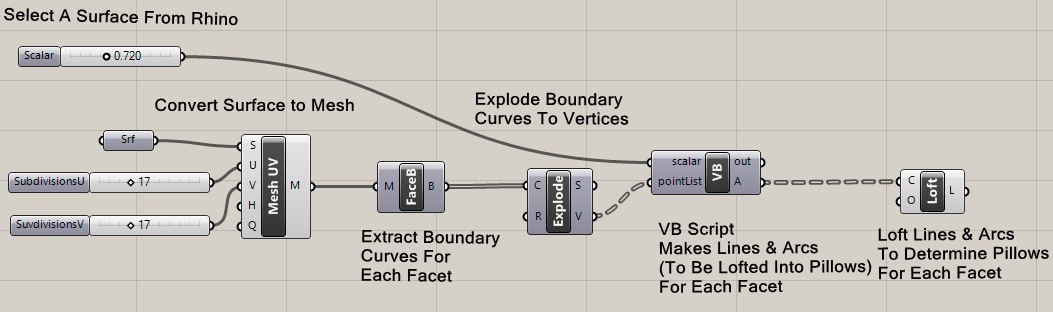

Without going into detail, which is beyond the scope of these workshop notes, the Grasshopper window has several components.
The initial saddle shape is a modified planar surface with two corner vertices elevated off the x-y plane.
![]()
When the Grasshopper file is applied, the saddle shape is converted to a surface array of pillows.
Applying the same Grasshopper file to other surfaces yields similar results.
Some useful sites related to scripting:
http://www.rhino3d.com/5/rhinocommon/
http://quicksilver.be.washington.edu/courses/arch486x/5.Grasshopper/6.Scripting/1.Introduction.html
http://theprovingground.wikidot.com/scripts-mathform
http://community.nus.edu.sg/DigitalDesignMedia/index.php/scripts/grasshopper-script/
http://www.rhino3d.com/5/rhinoscript/vbscript_fundamentals/vbscript_fundamentals.htm (some parts are outdated, especially related to vbscript)
