TRANSLATIONS FROM 2D TO 3D METHODS OF DRAWING

*note:  all selection paths prefaced by a B. indicate the Bentley B symbol or  the view windowÕs Bentley B symbol.



1.         Create: simple polygon lines.

closed polygon lines using tentative snap

circles, arcs.

crossing lines



2.         Bring up the snap tool palette - button bar

                        methods of snapping:

midpoint

centerpoint

intersection

keypoint

nearest



Draw in ISO view, start smart-line, use ÒTÓ to flip accudraw  to top mode

                        [ÒSÓ for side mode]

                        [ÒFÓ for front mode]



Temp snap/default snap options Ð use tentatives + confirm

mouseÕs pre-settings for tentative snaps:[first/second button Ð or middle button]





3.           Levels/Color

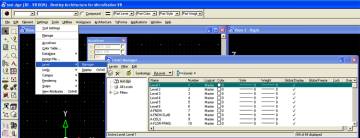

A. Window menu ÒB.Ó symbol Ð level display
                        Settings/level manager -

            Double-click current level

            Single click - level on/off

B. Settings/level manager Ð

Select unused levels Ð edit/delete

New level icon Ð level 2 Ð mynewlevel

Double-click on name ÒmynewlevelÓ to make it active

                                    [or create via B. Levels> new level]

                        Change levels via:

by level Ð pick color

                                    by Override Symbology Ð pick color



Draw element in any other color

                        Attributes menu/color Ð pick ÒbylevelÓ Ð draw new element

                        View attributes  - pick symbology Ð see changes









4.     TRANSFORM Commands

Copy form (repeat 1, 2)

Move forms

Rotate 3 pt.

Rotate angle (pre-select)

Mirror (line)


5.     Tools/3dMain/3d Main Ð first icon expanded

ISO VIEW

Draw slab, sphere, cylinder

            Render in Phong Shading



6.     Edit select by attributes/togel general button

Selector:

Type - elipse

Color Ð select and pick color

Level Ð pick all

Mode:

Try Inclusive and then Exclusive



7.     Cells

EXISTING CELL

Element/cells

Use existing library

Open: program files/Bentley/workspace/triforma/tf_imperial/cell/02_site.ce .bxcair

Place cells in model (body and bench)





CREATE CELL LIBRARY

Lib1.cell (note 3d seed file)



Create two cells Ð cell one and cell two

Sixth icon/right side/main tool palette

Place origin

Fence Cell

Cell dialog box, select ÒcreateÓ button

Cell dialog box, choose placement with Òcell1Ó highlighted



Tools palettte

Place cell/uniform scale

Place cell/varied parametric scale

            Try relative/interactive



TWO METHOD OF UPDATE



Cell dialog box, choose placement with Òcell1Ó highlighted

replace cell1 with cell2 [global .vs. single mode]



DANGEROUS

Delete cell1

Create new cell1

update cell1
